Teradek Bolt 6 LT 750 TX/RX

Marca: Teradek

Color: Black

Caracteristicas:

• Range up to 220m
• up to 4K30
• <1 ms latency
• 3G-SDI, HDMI 2.0

Unión: Electrónica

Fecha de lanzamiento: 12-01-2024

Número de modelo del producto: TE-B6LT-750

Identificador de producto del fabricante: TE-10-2260

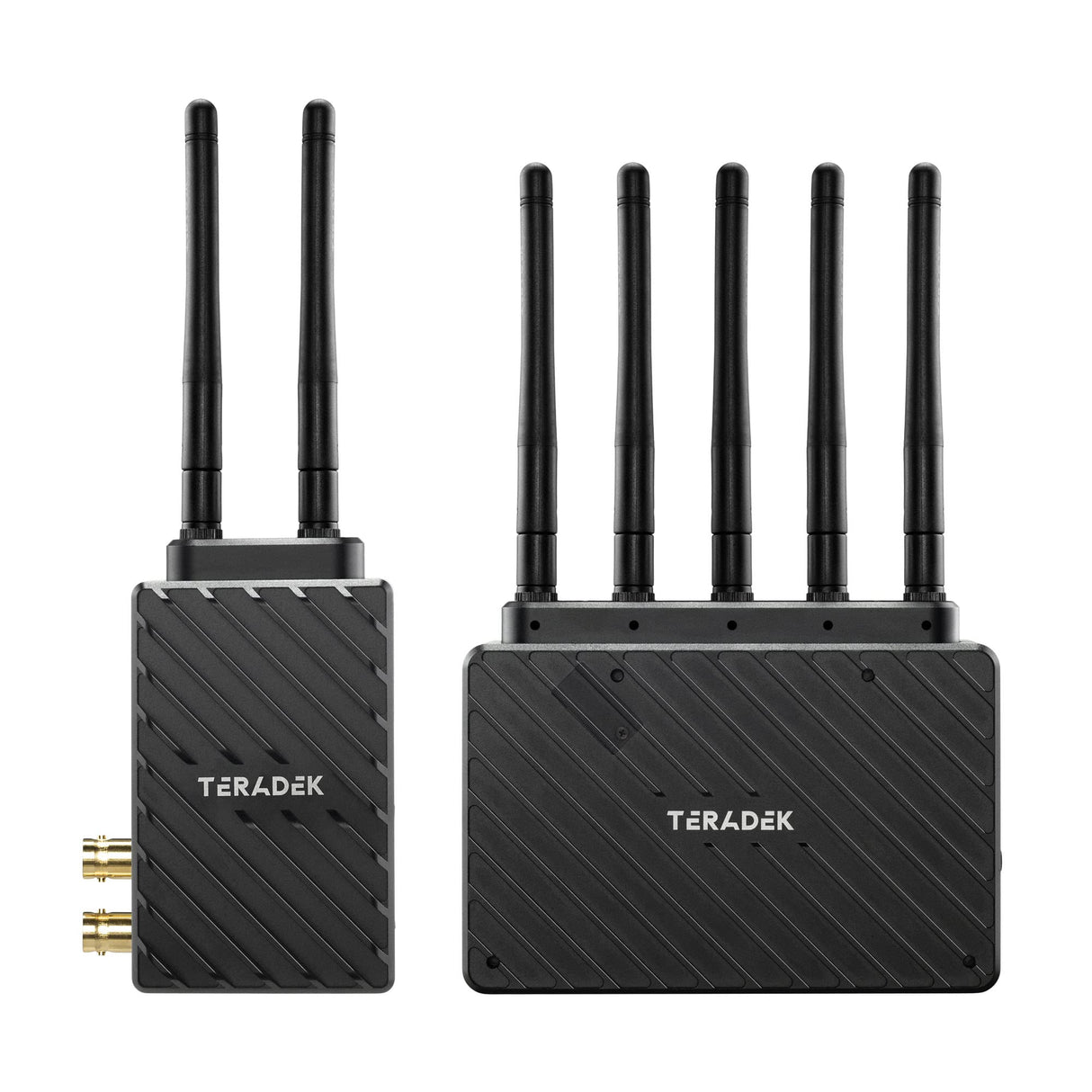

Detalles: Teradek Bolt 6 LT 750 TX/RX videotransmission set

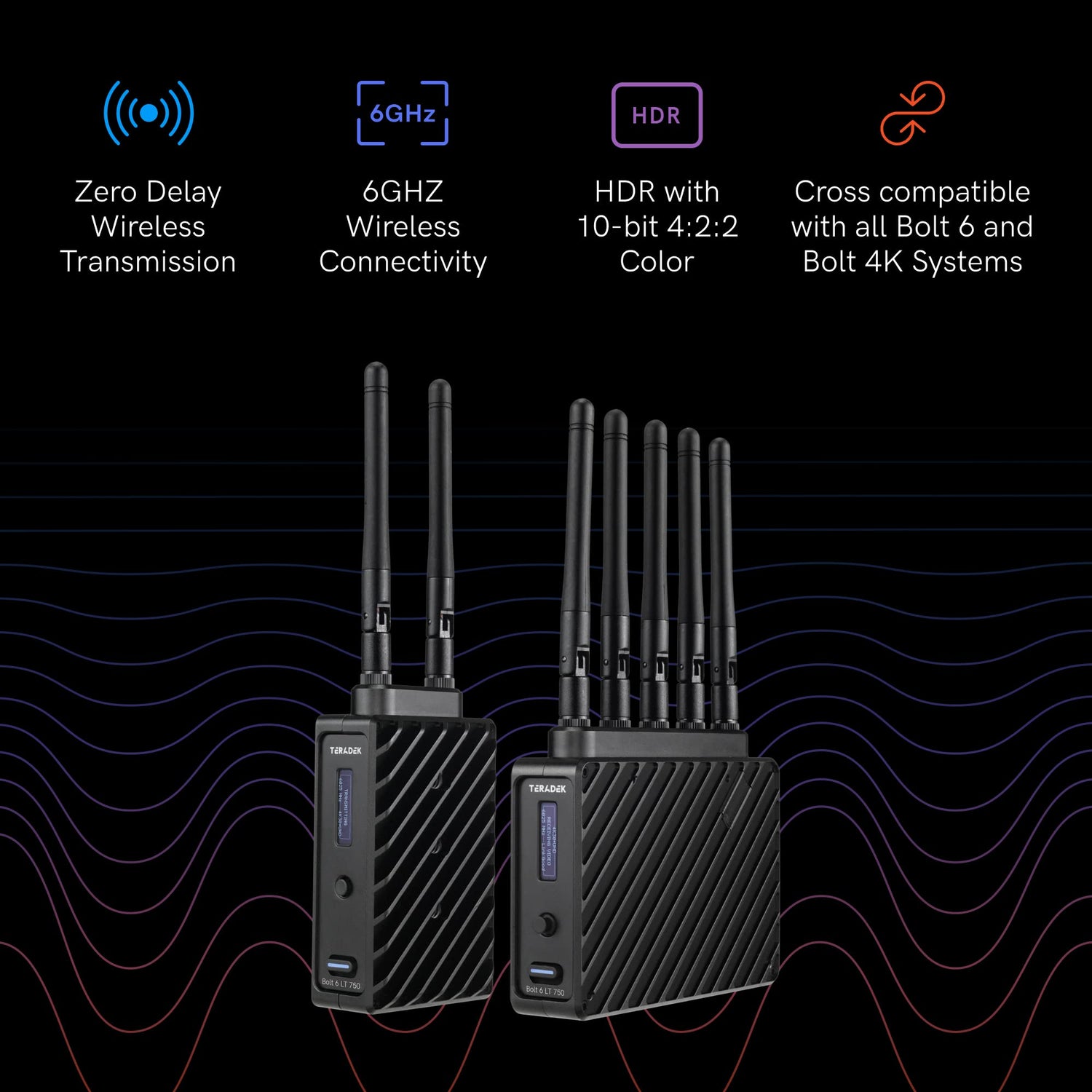

The Bolt 6 LT Set is a real-time wireless video transmission system that supports 4K video with Teradek's patented Zero Delay technology, now with less interference thanks to the newly opened 6 GHz radio frequency. Bolt 6 LT can send and receive color-accurate True HDR videos in less than 0.001 seconds with the included Bolt 6 LT video transmitter and receiver.

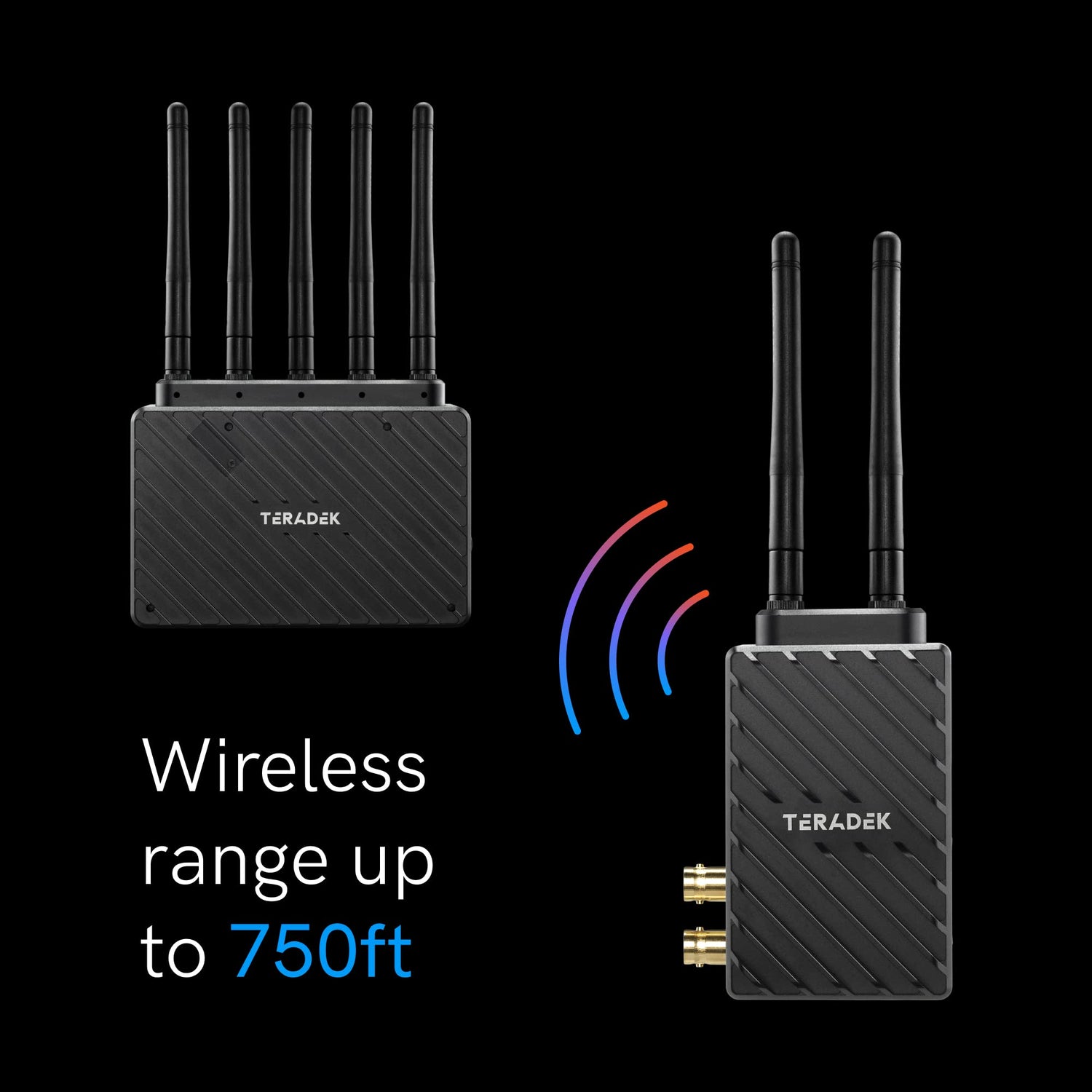

Key features of the Bolt 6 LT Set include a range of 220 meters (750 feet), fast reconnect times, intuitive, easy setup with the Bolt Manager app for iOS or Android, and a consistent, stable connection. Bolt 6 LT uses the 6GHz band to provide users with better picture quality and less interference. When used in busy areas, the 6GHz radio frequency offers users of the Bolt 6 LT more frequency adjustment options with twelve new channels. The Bolt 6 can also transmit metadata, timecode and start/stop flags from most camera manufacturers.

Additionally, Bolt 6 offers new tools for high-end users, including better visibility of connections and signals, making workflow more secure in any environment, no matter how difficult. It also offers access to the new Long Range Mode, which enables better video quality at greater distances. A built-in 5-pin USB port allows for effortless and wireless camera control setup when using SmallHD smart monitors.

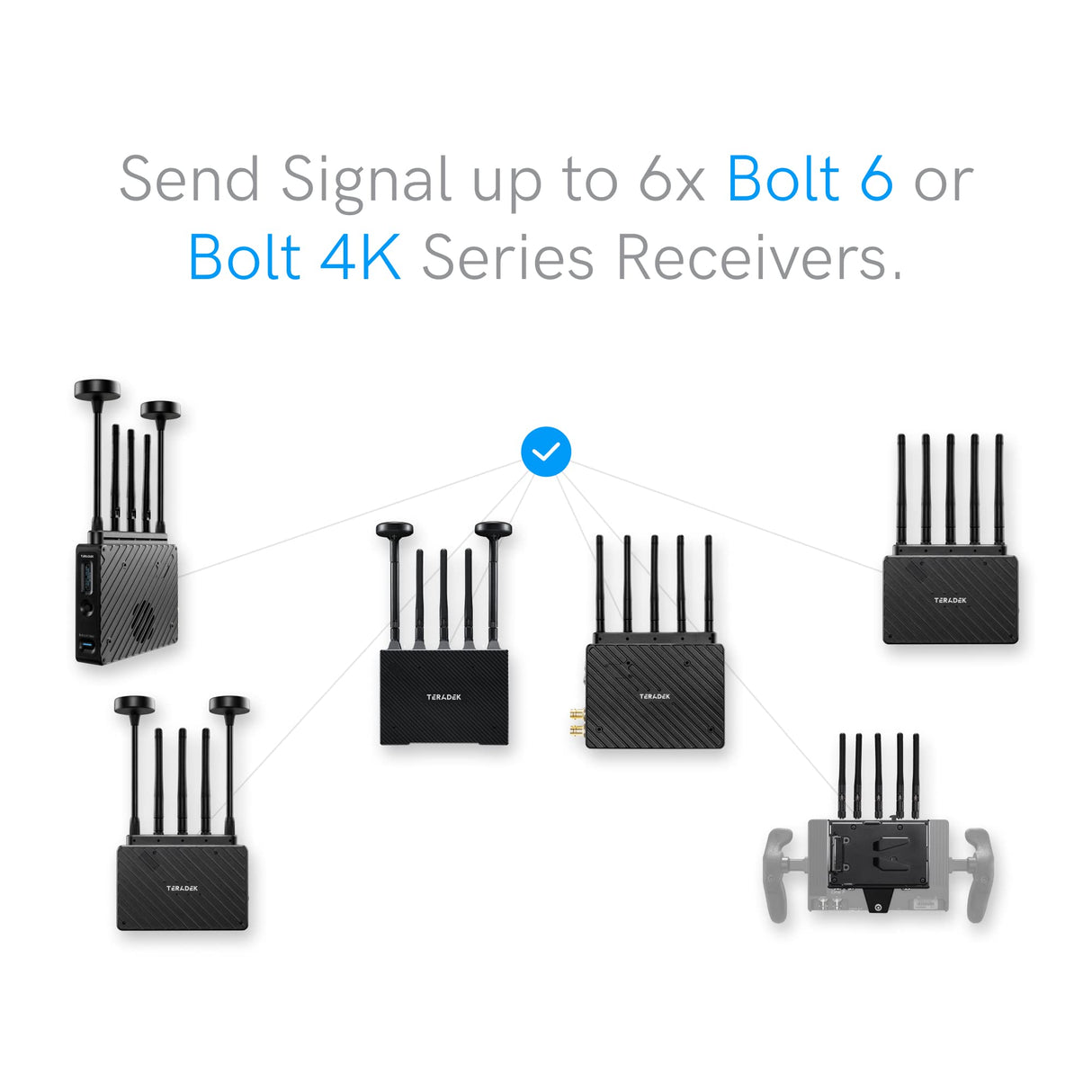

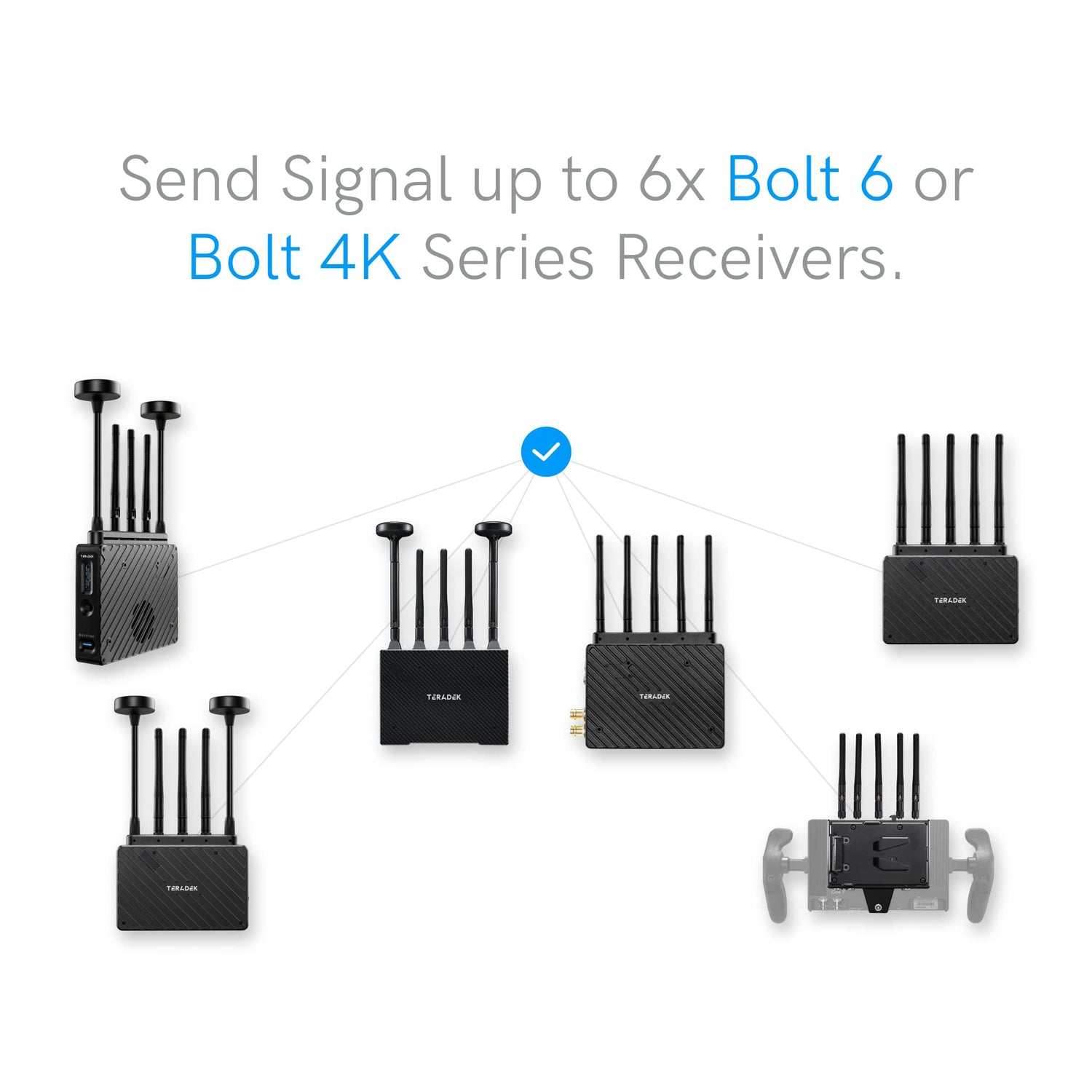

The included ultra-compact transmitter and receiver are compatible with the entire Bolt 4K series - including Bolt 4K, Bolt 4K LT and the Bolt 4K monitor modules - giving you the opportunity to expand your workflow needs. Connect up to six receivers to one transmitter.

The Bolt 6 LT Series is available in three different ranges: 750 feet (220 meters), 1500 feet (440 meters) and the MAX set, with up to 5,000+ feet (1500 meters).

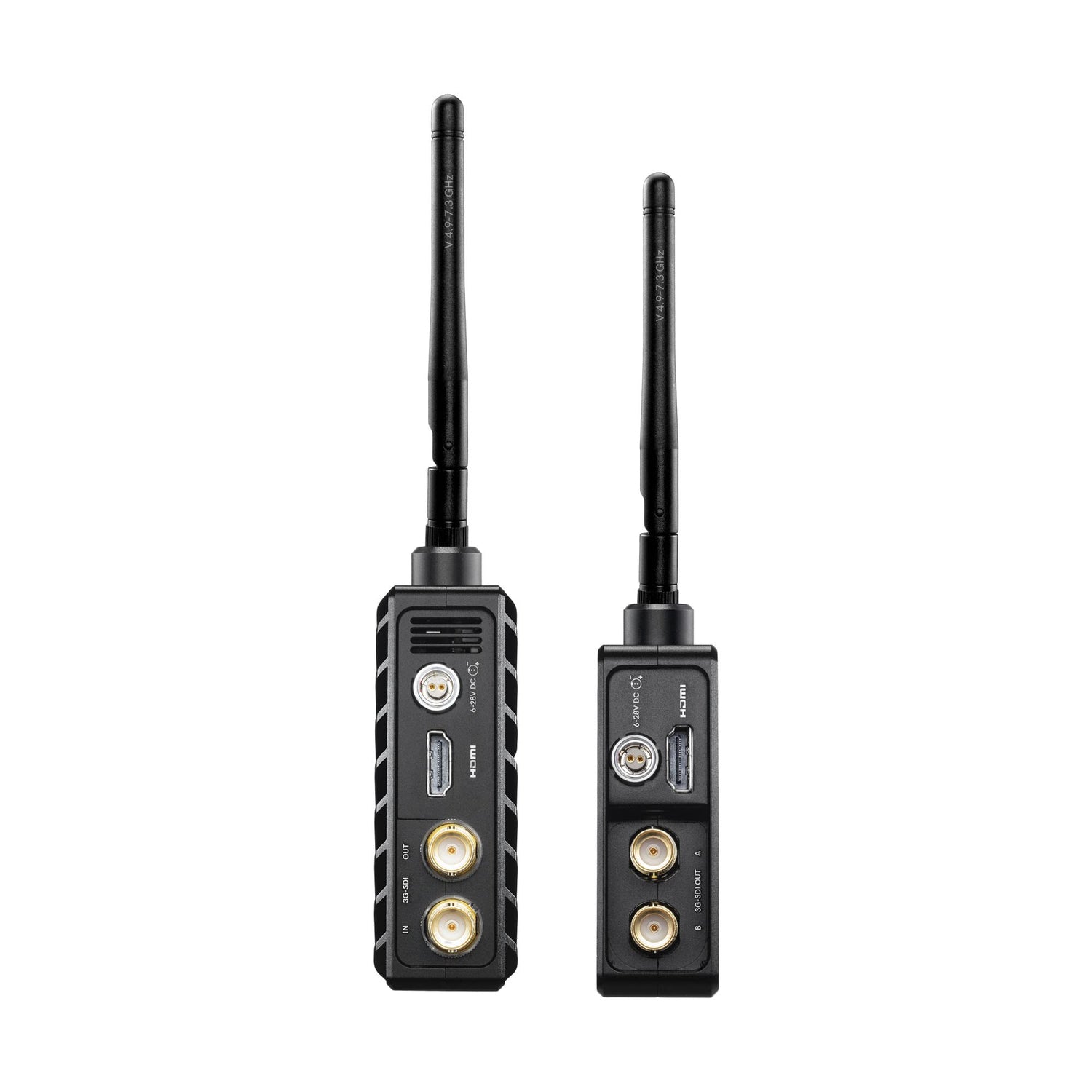

Since the Bolt 6 LT Kit has both 4K HDMI and 1080p SDI inputs and outputs, you can also choose the Bolt 6 LT HDMI model if your productions only require HDMI.

About 6GHz:

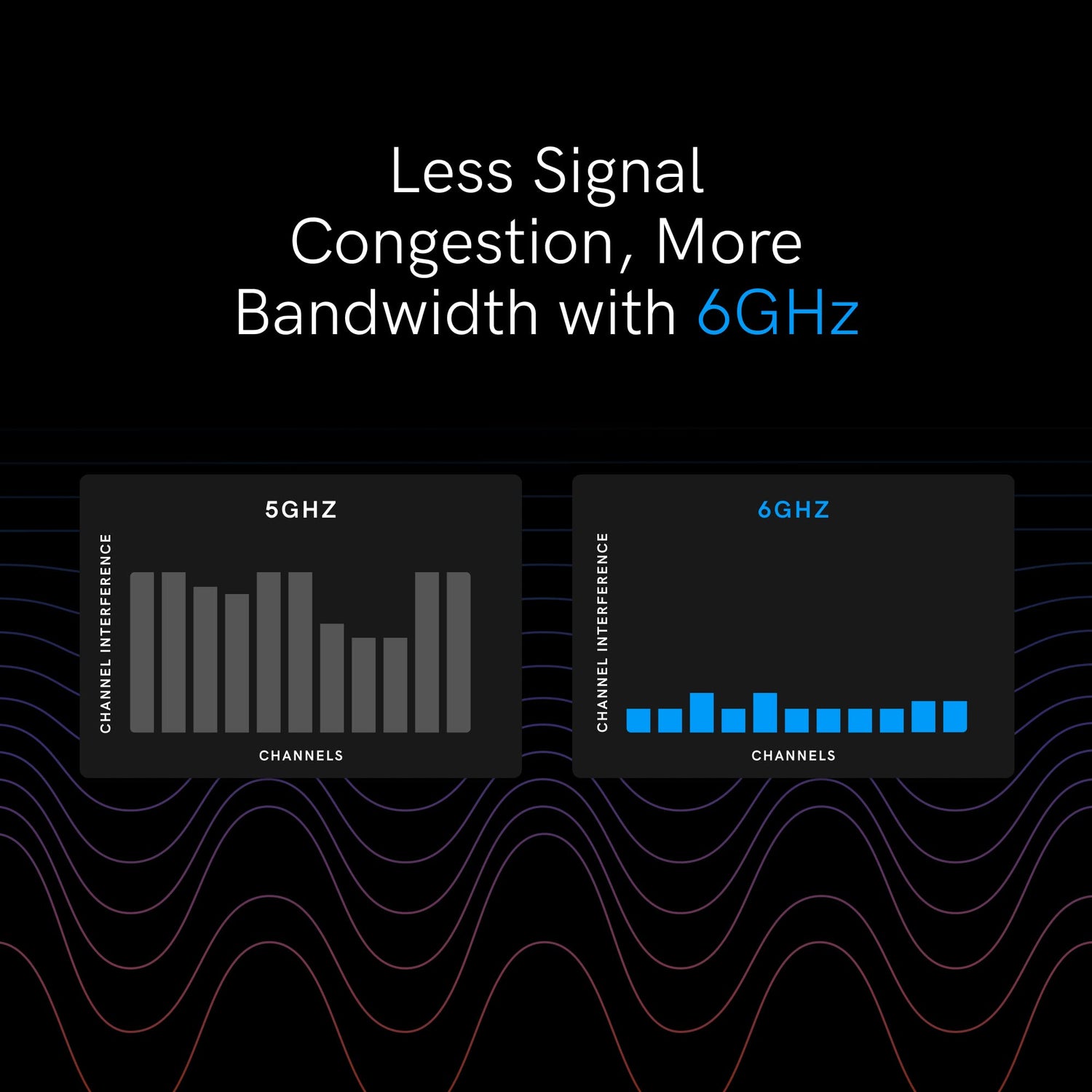

Competitor WiFi routers, mobile phones, IOT devices and wireless video systems are among the many devices that use the 5GHz frequency for wireless communication, resulting in a highly crowded area where interference and even video dropouts are common . Bolt 6 uses the newly opened 6GHz frequency for a significantly quieter wireless environment (although it can still be set up in 5GHz mode for backwards compatibility). In 6GHz mode, Bolt 6 users get faster connections and less interference for a better Wi-Fi experience. The 6GHz frequency is now available in the US and Canada under UNII-5 government specifications. More countries will release the 6GHz frequency in 2023.

Note:

For the 6GHz band, Bolt 6 uses different antennas than the previous Bolt 4K model.

Features:

Range: 220 meters
Video: up to 4K30
Inputs/Outputs: 3G-SDI, HDMI 2.0
<1ms latency
work in the 5 GHz & 6 GHz band
backwards compatible with Bolt 4K
Support for HDR, HLG and PQ (10-bit 4:2:2)
AES-256 encryption and RSA 1024 key pairing
transmits to up to six receivers without loss of quality
Fan 50% quieter than Bolt 4K

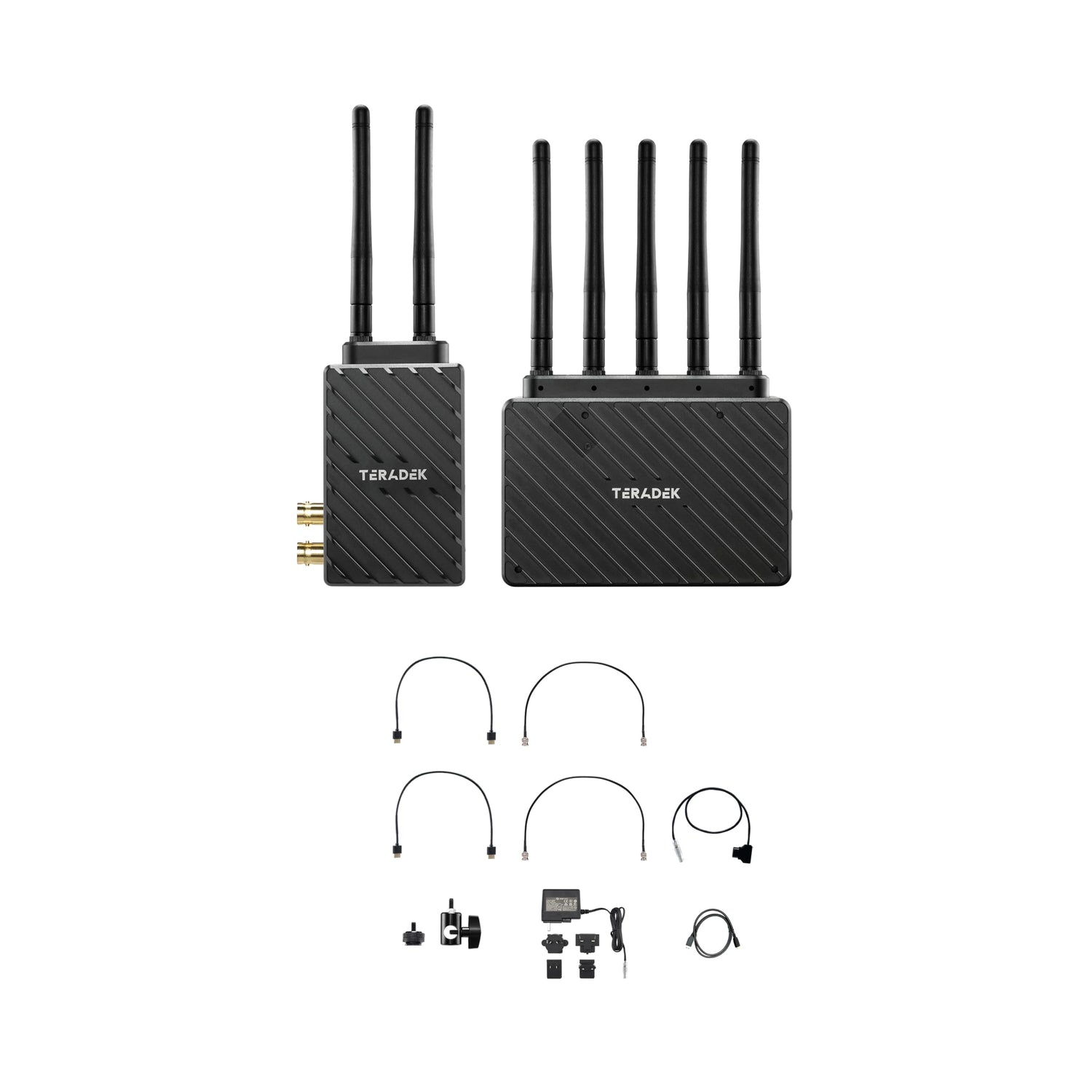

Content of Delivery:

1x Bolt 6 LT 750 TX
1x Bolt 6 LT 750 RX
1 hot shoe adapter
1x (Bit 118) 2pin plug to PowerTap - 18in/46cm cable
2x ultra-thin HDMI Type A - HDMI Type A, 18 inch/46 cm cable
1x Teradek case large - Bolt 6 LT TX/2RX
1x power supply 2pin to 18W AC adapter - 1.8m cable
1x USB 2.0 Type A male to USB Type C male - 1m cable

EAN: 0818264028230

Dimensiones del paquete: 12.3 x 8.3 x 6.3 inches
