Blackmagic Design ATEM Mini Extreme ISO

Marca: Blackmagic Design

Color: negro

Caracteristicas:

• Records 9 streams

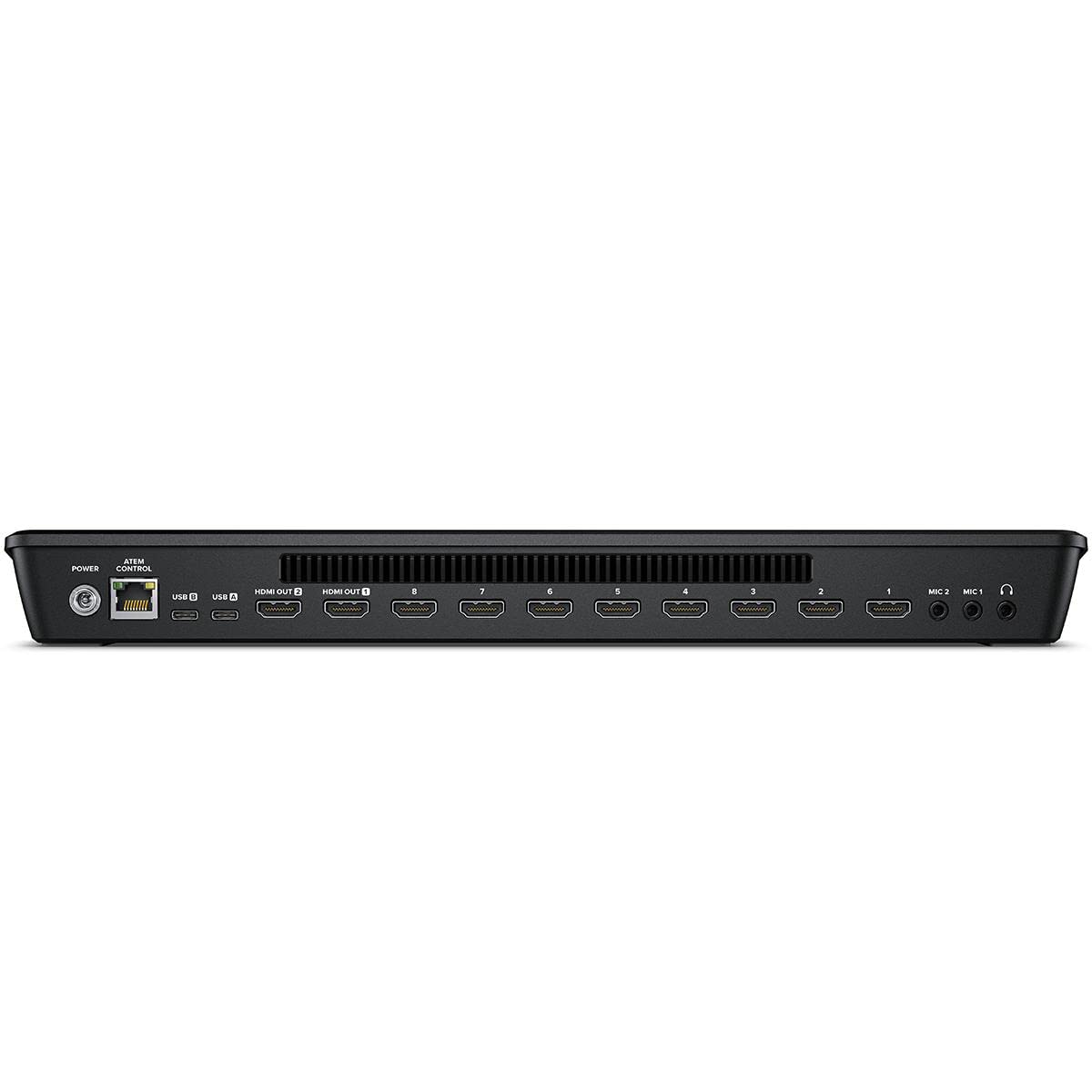

• 8 Inputs / 2 Outputs
• 2x Stereo In
• 1080p60 In

Unión: Electrónica

Fecha de lanzamiento: 07-03-2021

Número de modelo del producto: OB02475

Identificador de producto del fabricante: SWATEMMINICEXTISO

Detalles: Features

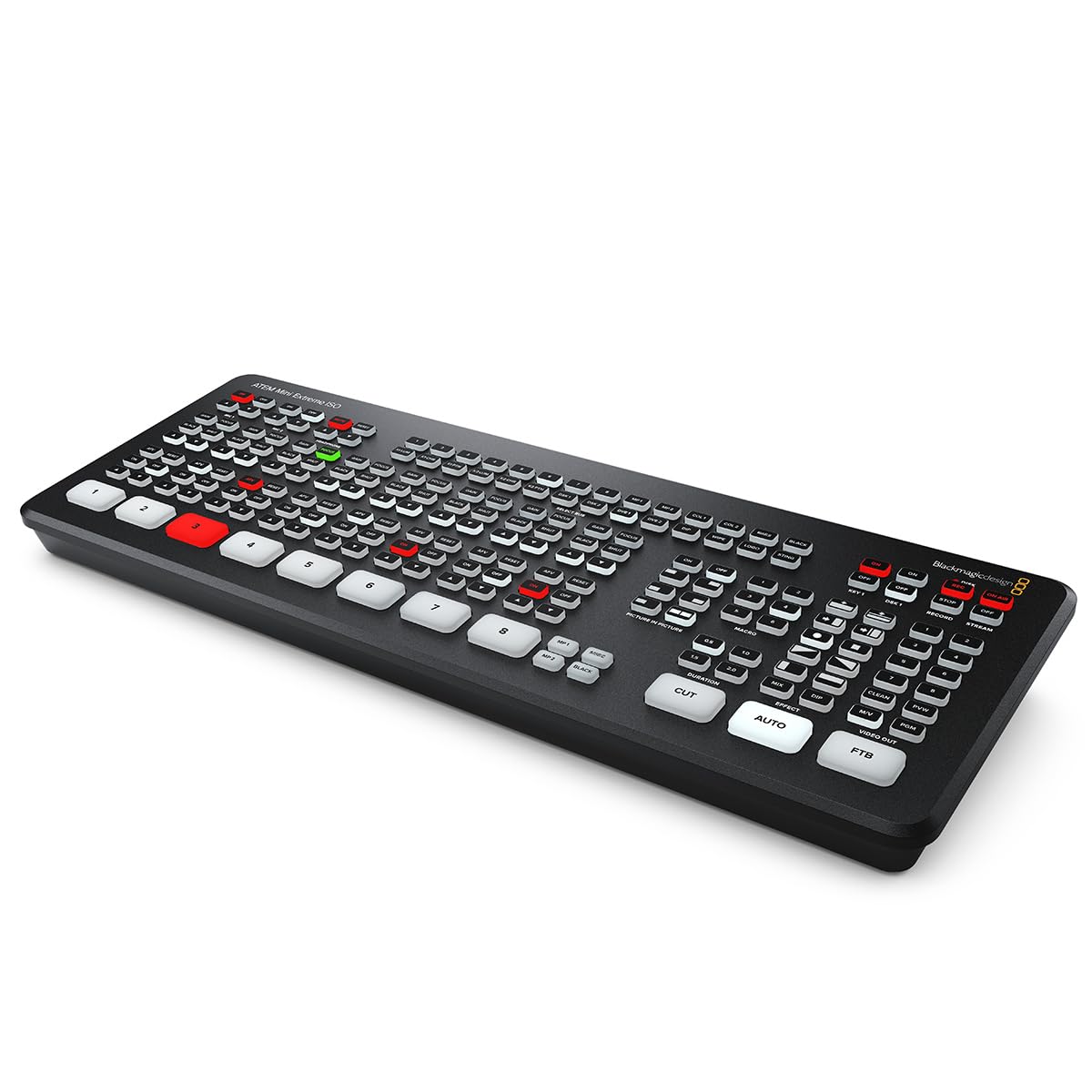

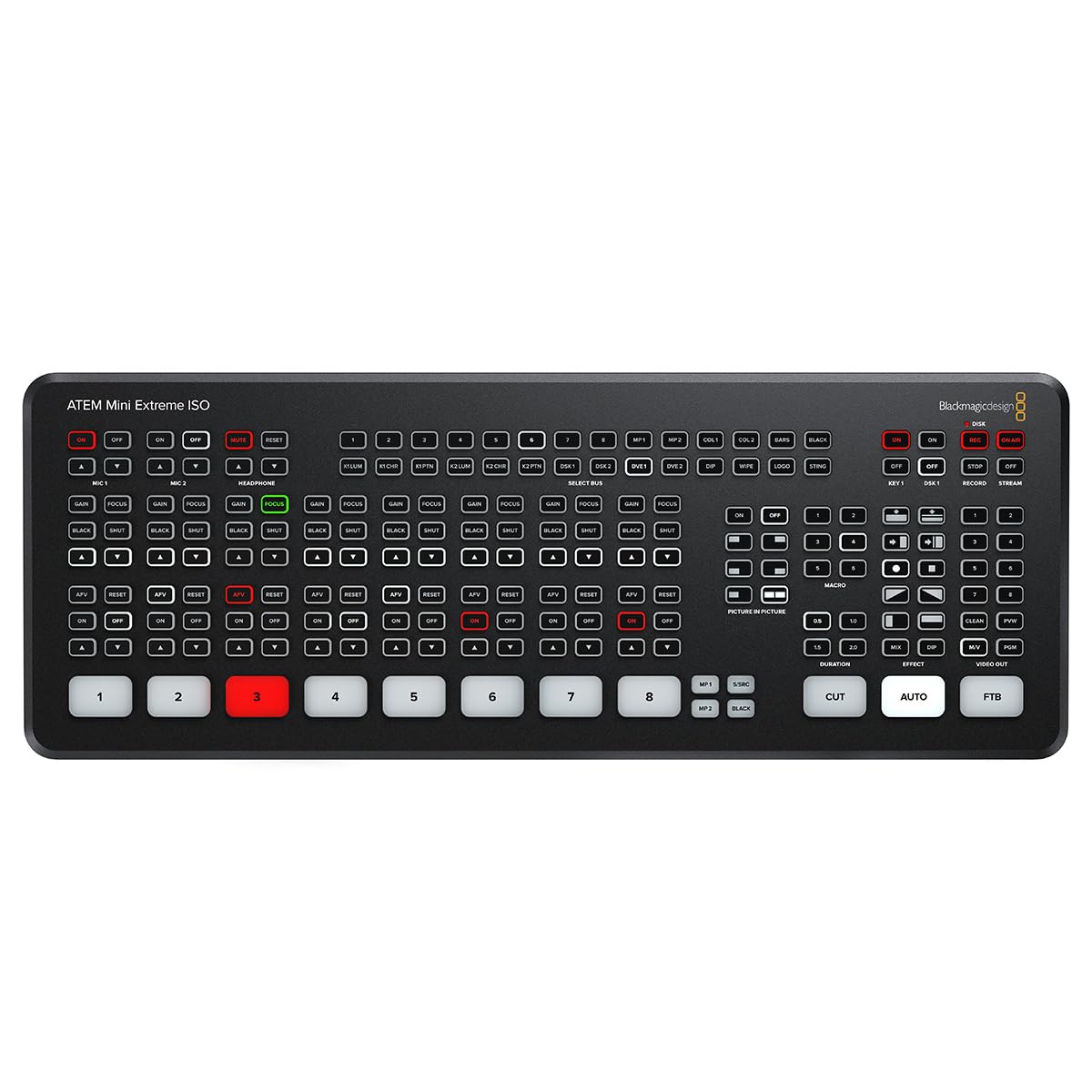

miniaturized control panel based design 8 Inputs / 2 Outputs Supports streaming via Ethernet or tethered phones via USB Tethers to 5G or 4G phones for mobile remote streaming Records 9 streams to USB flash disks in H.264 Two stereo audio inputs for connecting desktop or lapel microphones Automatically standards converts and re-syncs all HDMI inputs Includes free ATEM Software Control for Mac and Windows Internal media for 20 RGBA graphics for titles, opening plates and logos 4 upstream ATEM Advanced Chroma keyers for green/blue screen work 2 independent DVEs plus SuperSource with 4 extra DVEs 16 way multiview for monitoring all cameras, recording and streaming status Connect up to 8 Independent Cameras
With 8 HDMI inputs, you can connect multiple cameras for different views. Video cameras with HDMI outputs are better quality than simple webcams as they use higher quality lenses and have better low light sensitivity. All video sources will re-sync to the switcher if they operate at different video standards so you don't have to worry about connecting video devices as they all just work! Cameras with HDMI often support interchangeable lenses so you can change to wide angle lenses for wide shots and zoom lenses for close ups. Imagine taking advantage of the low light capability of better cameras for theater production, weddings, school concerts and music videos!

Outputs to HDMI Video and USB Webcam!
To ensure maximum compatibility, all ATEM Mini models feature USB that operates as a simple webcam source. That means you can plug into a computer and get working with any video software! The software is tricked into thinking the ATEM Mini is a common webcam, but it's really a live production switcher. That guarantees full compatibility with any video software and in full resolution 1080HD quality. Choose any software you like, such as Zoom, Microsoft Teams or Skype for a new way to do presentations with a professional multi camera broadcast quality style! The ATEM Mini webcam output also works with streaming software such as Open Broadcaster, XSplit Broadcaster and more!

Connect 5G or 4G Phones for Mobile Data
If you’re doing live production on location then the ATEM Mini Extreme models support connecting an Apple or Android phone to the USB port to use mobile data! It's also a great backup for the main Ethernet connection. Phone tethering works with the latest high speed 5G phones plus the more common 4G phones! The ATEM switcher will automatically detect when a phone is connected and switch its internet connection to use it, eliminating the need for changing settings. When connected, the phone will power from the USB port so it remains charged from the switcher. By using phone tethering and mobile data, ATEM Mini Extreme becomes the perfect mobile production solutions!

Live Stream via Ethernet
ATEM Mini Extreme models have a built in hardware streaming engine for live streaming via their ethernet connections. That means you can live stream to YouTube, Facebook and Twitch in better quality, without dropped frames and with simpler settings. Just select the streaming service and enter the streaming key! There are palettes in ATEM Software Control for streaming setup, plus streaming status is also displayed in the multiview. Streaming status is easy to understand as the data rate indicator shows internet speed required for the video format you're using. If you're technically minded, you can update the streaming profiles in an XML settings file to load new services.

Record Direct to USB Flash Disks with ATEM Mini Pro
The ATEM Mini Extreme models also support direct recording of your streaming data to USB flash disks! That means you get very long recordings in the same H.264 video files with AAC audio that you streamed, so you can direct upload to any online video site, such as YouTube or Vimeo. Recording to multiple disks is also supported via a USB hub or Blackmagic MultiDock, so when a disk fills recording can continue to a second disk for non-stop recording. Record settings and disk selection are set up in ATEM Software Control and there's a record status view in the built-in multiview. You can even trigger recording on connected Blackmagic Pocket Cinema Cameras!

Create Amazing Virtual Sets
The ATEM Mini Extreme models include 4 upstream chroma keyers and this allows you to build exciting virtual sets! With 4 independent chroma keyers, you get a keyer per camera so you can build a virtual set for up to 4 cameras. With ATEM Mini Extreme you have 8 inputs, 4 to use for cameras and the other 4 can be connected to a virtual set computer for the rendered backgrounds. Or you don't need to move your cameras, you can do fixed camera virtual sets by loading pre rendered still image backgrounds from the media players and media pool. You can setup macros to change cameras and load the correct background into the media players! Or even use a DeckLink Quad HDMI and live virtual set software!

Powerful SuperSource

EAN: 0663701850505

Dimensiones del paquete: 20.8 x 6.8 x 3.5 inches
